Maasdrielhof upgrade 1

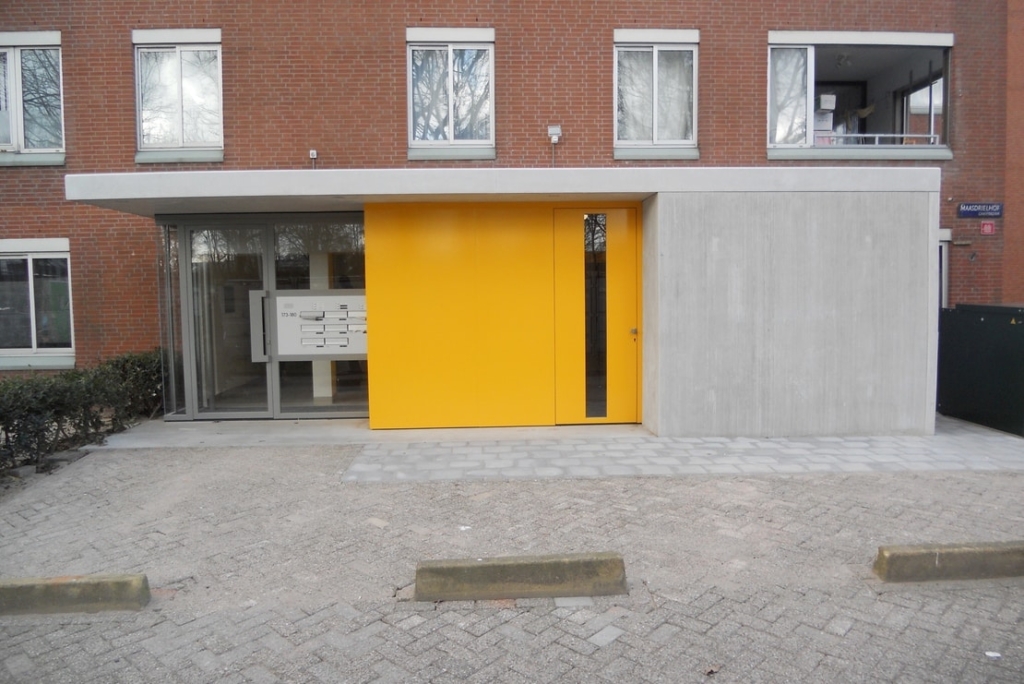

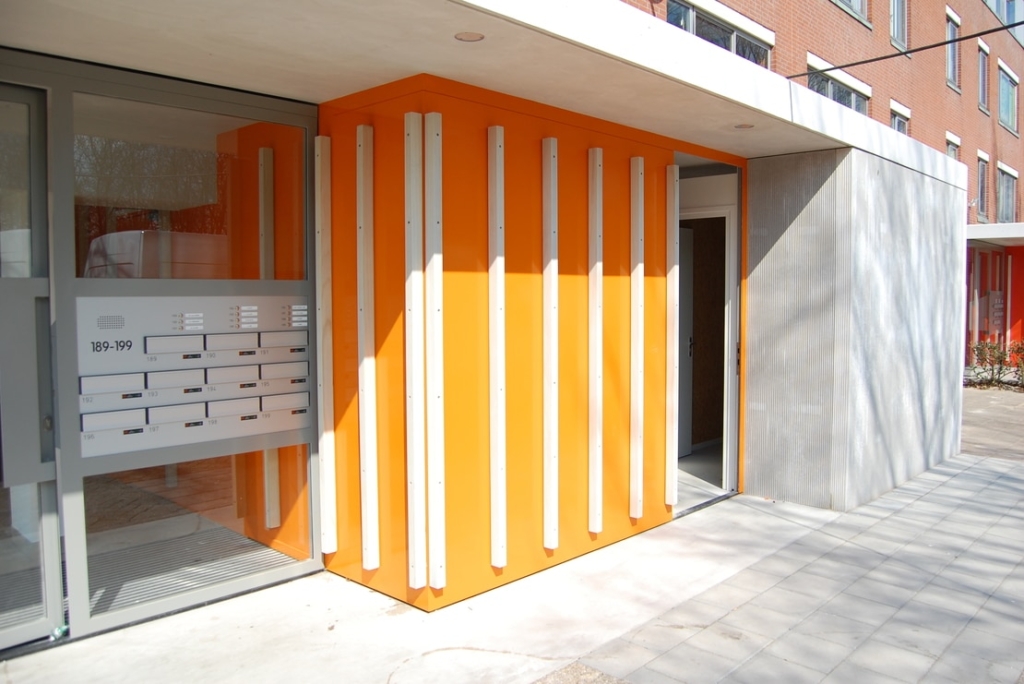

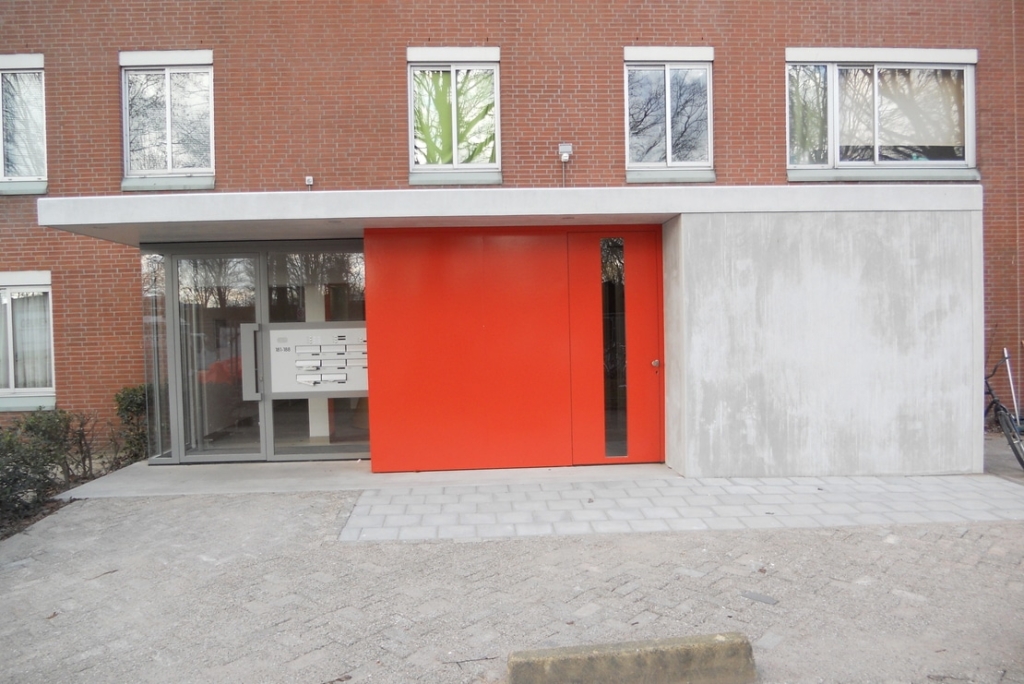

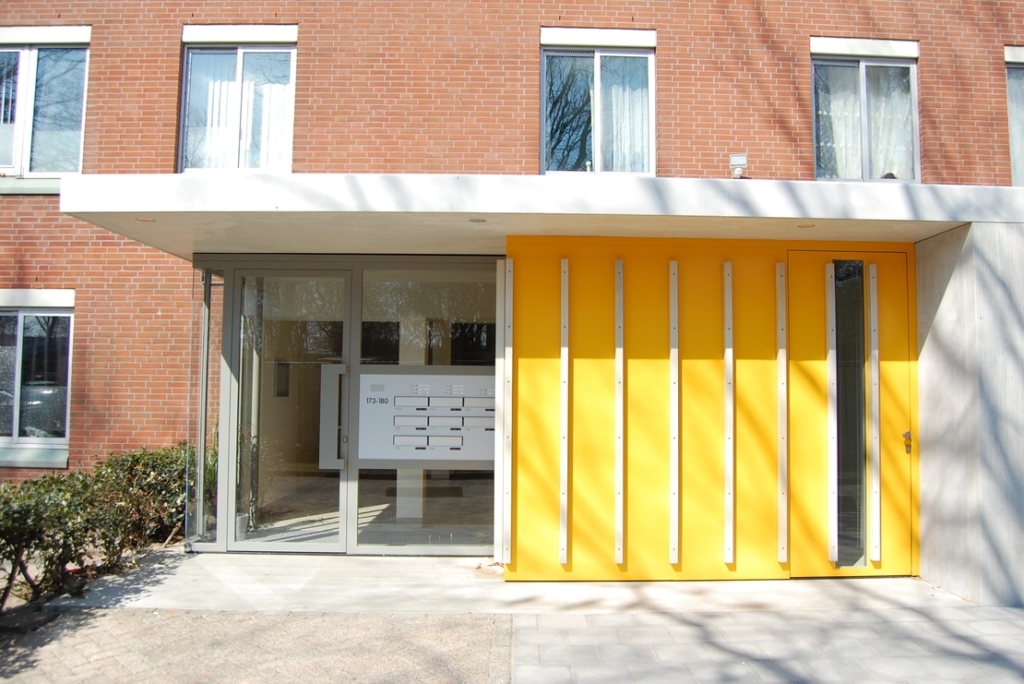

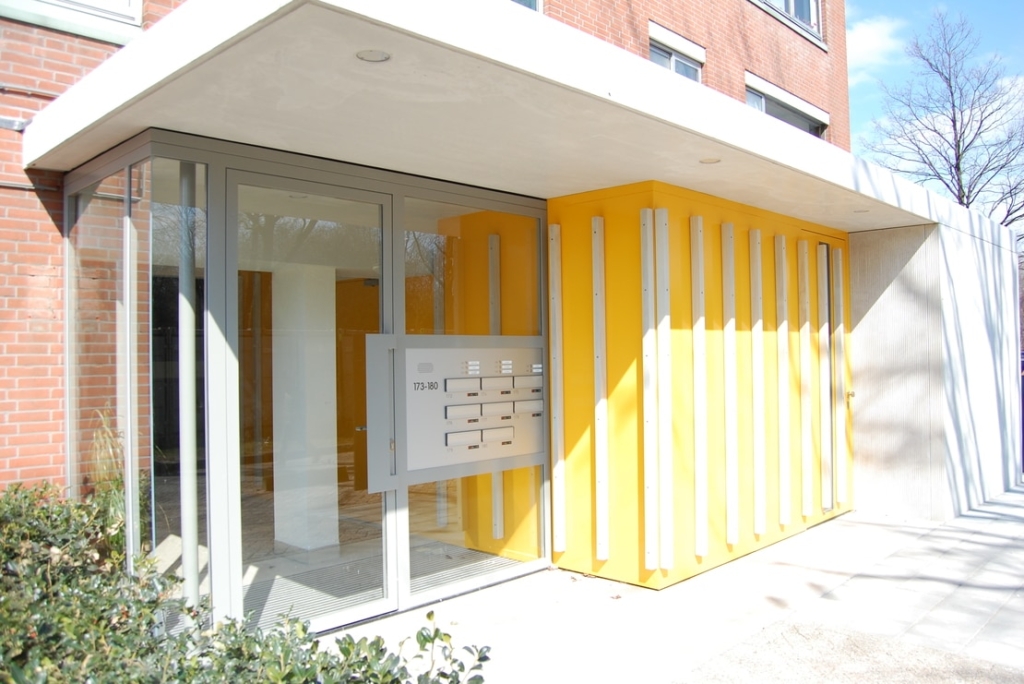

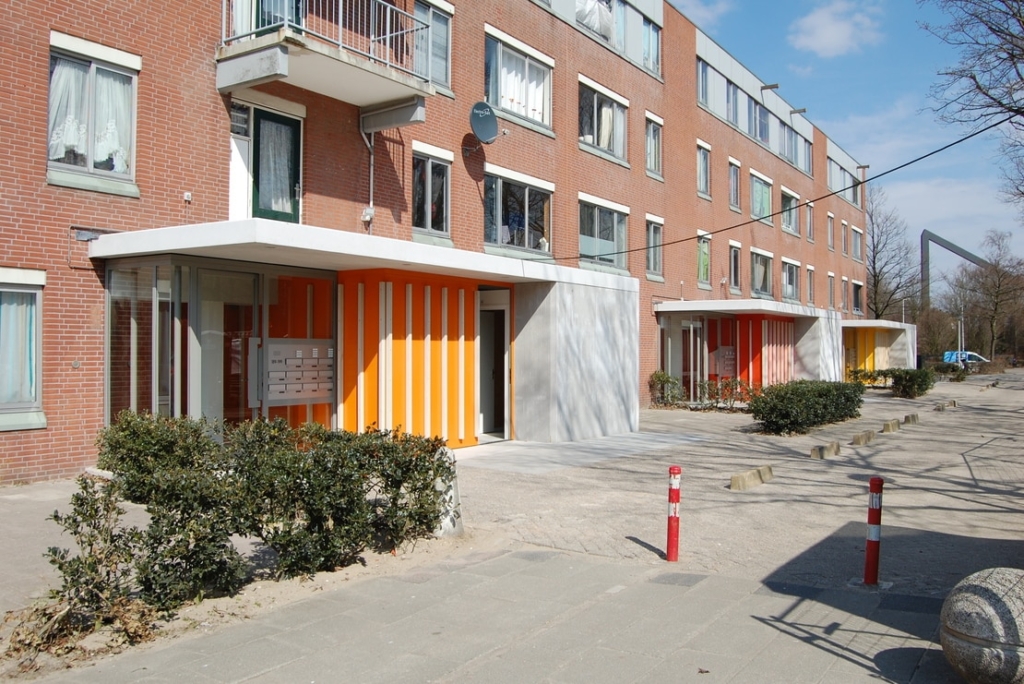

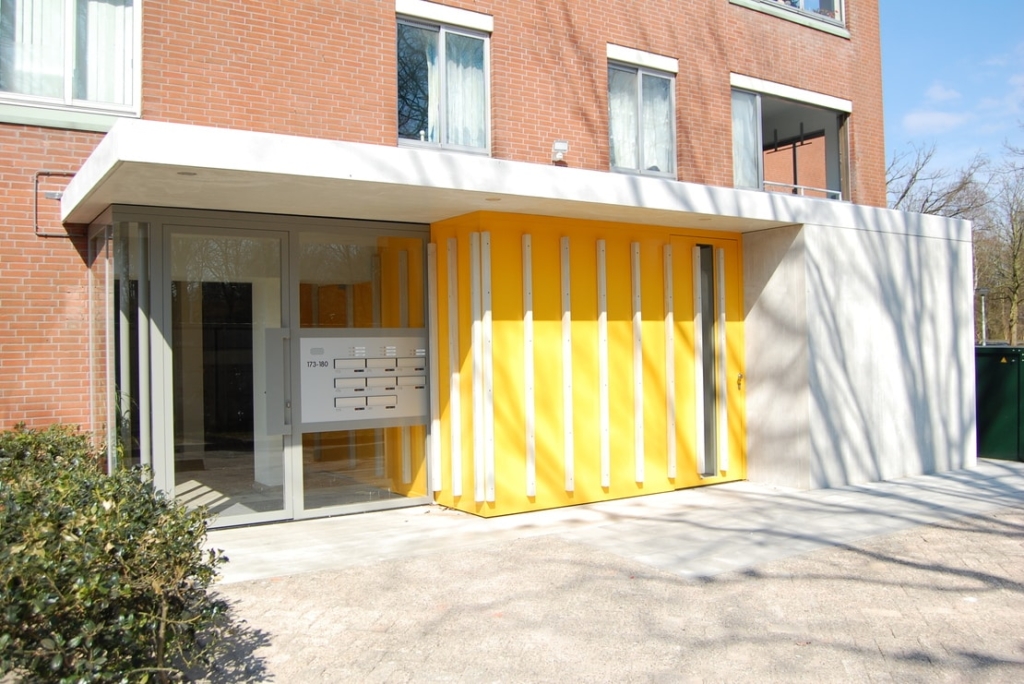

Vroom is taking care of the delivery of doorways for Maasdrielhof in Amsterdam. We are conducting dimension and piling activities and we are taking care of the delivery and mounting process of concrete floors, walls and roofs.

Within six days!

Once more, we are realizing a series of 4 doorways within six days.

The first series has been realized in 2012. The preparations for the second series have started according to the following schedule:

On day 1 and 2, 12 steel tubular piles will be driven and poured.
On day 3, the piles will be finished off at height with mortar.
On day 4, the four floors will be mounted.
On day 5, the walls and steel columns will be mounted and anchored to the floor.

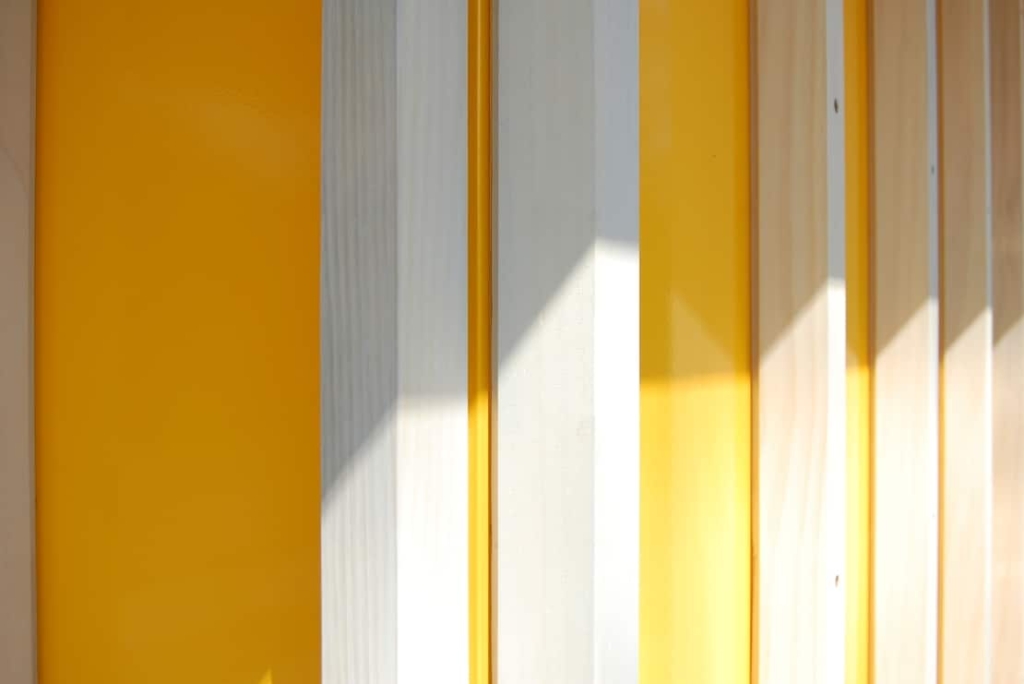

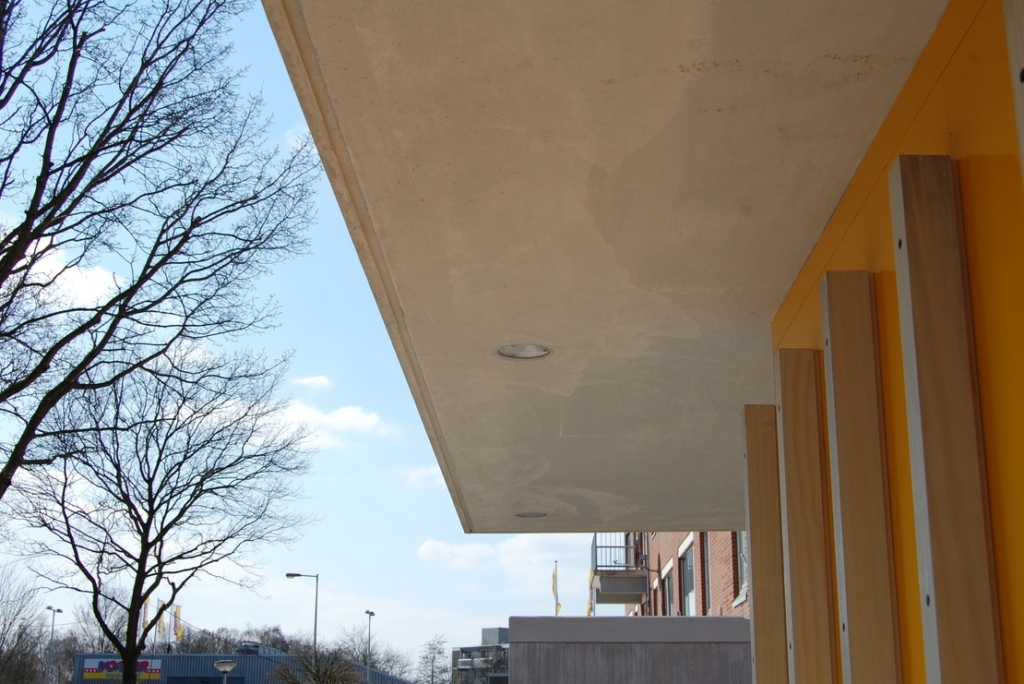

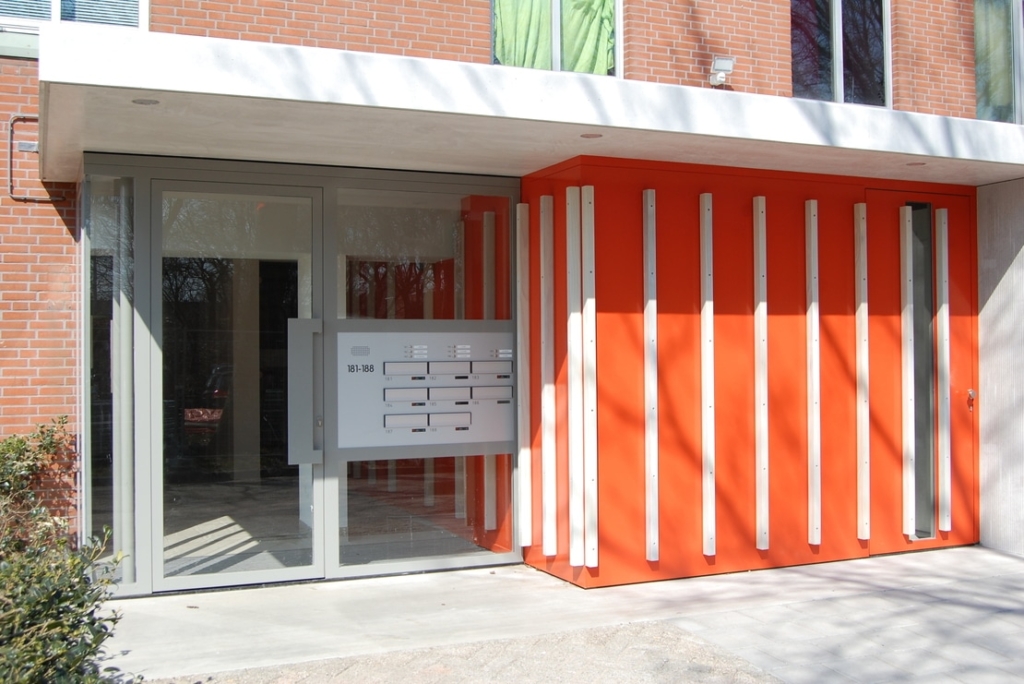

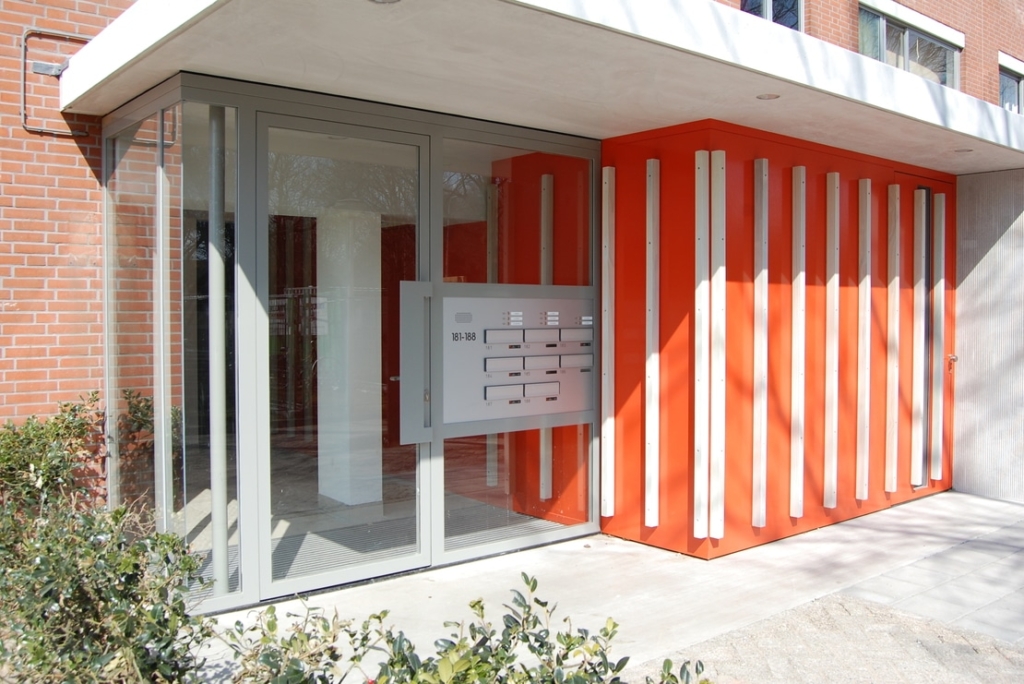

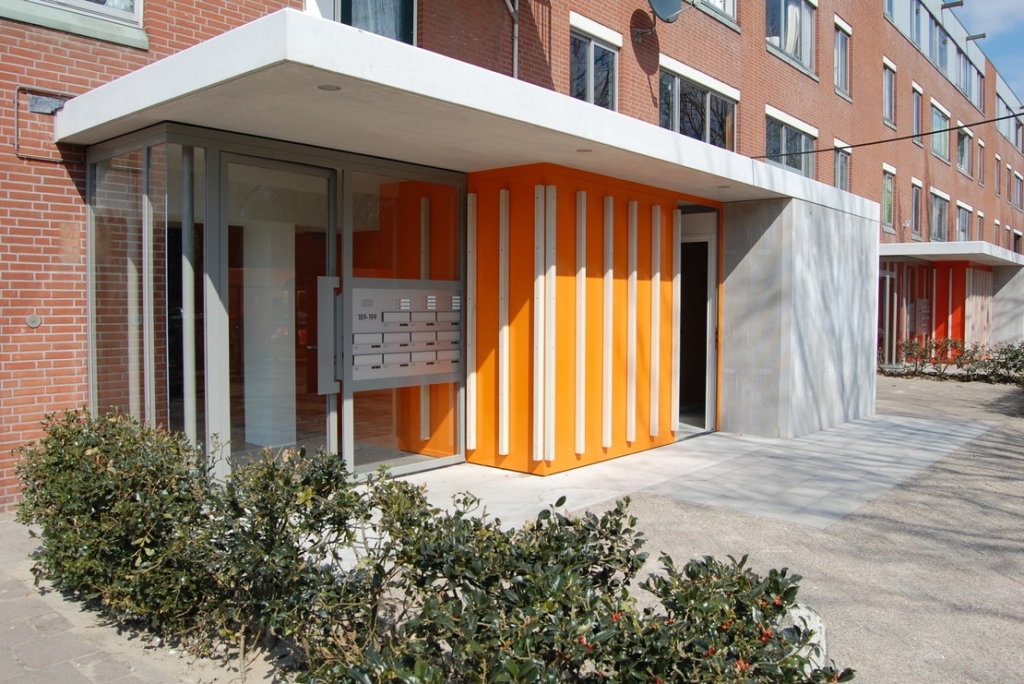

On day 6, the roofs will be mounted as the doorways will be finished off further and completed. The doorways will be produced from concrete and 100% white concrete is added. The concrete is hydrophobic so that the attachment of dirt will be prevented. On the outside, the walls are equipped with a profile, and in the factory, the roof elements have already been equipped with openings for ventilation and railings.

Pile system

12 steel tubular piles, length 11m, diameter 219mm
3 piles per doorway

Prefab concrete elements

4x floors 2900 x 9060 x 460 mm
4x walls 695 x 2527 x 120 mm
8x walls 2900 x 2597 x 120 mm
4x roofs 2900 x 9060 x 250 mm

12 segment piles
20 concrete elements

Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Maasdrielhof upgrade 1
Location
Amsterdam
Client
Stadgenoot Amsterdam
Contractor
Hemubo Bouw Almere
Architect
Rudy Uytenhaak Architectenbureau

Dick Reijnders
Project Manager
